6061-T6 vs 7075-T651: Strength, Machinability and Cost

Quick answer: should you choose 6061-T6 or 7075-T651?

Choose 6061-T6 when its strength is sufficient and corrosion resistance, weldability, finishing flexibility, material availability and total cost matter most. Choose 7075-T651 when a machined part needs substantially higher static strength or strength-to-weight performance and the design can accept higher material cost, less favorable corrosion behavior and limited welding options.

The best choice follows the part’s load case, product form, thickness, environment, joining method, finishing requirement and inspection plan. For a stiff plate or housing, changing from 6061 to 7075 may add much less benefit than expected because their elastic moduli are close. For a strength-limited bracket, 7075 may allow a lighter section, but only after the designer checks fatigue, bearing, corrosion, stress concentration and the governing material specification.

Cost cannot be reduced to a universal price multiplier. A responsible comparison combines the current mill-stock quotation with material yield, machining time, tool consumption, finishing, inspection, certification, scrap risk and the value of any weight reduction.

Seven-step 6061-T6 vs 7075-T651 selection process

Step 1: define what the part must survive

Do not begin with an alloy name. Record the maximum and repeated loads, load direction, unsupported span, acceptable permanent set, deflection limit, operating temperature, shock or vibration, target mass, environment and required life. Identify which requirements are calculated, which will be tested and who can approve a change.

Mark the load-carrying features on the drawing or model. Include bolt holes, bearing seats, threads, lugs, thin transitions and short-transverse sections. These local features can govern before the headline tensile strength does.

Step 2: compare the alloy, temper and product form correctly

“6061-T6 vs 7075-T651” combines an alloy comparison with a temper and product-form question. Under the Aluminum Association temper designation system, T6 identifies material that has been solution heat treated and artificially aged. T651 adds stress relief by controlled stretching after solution heat treatment, followed by artificial aging. The extra digits describe processing; they do not create a universal strength premium over T6.

T651 is common for plate because stress relief can reduce residual-stress effects during material removal. It does not make distortion impossible. Stock thickness, grain direction, blank location, machining sequence, workholding and the amount removed from each face still matter.

If both candidates will be machined from plate, ask suppliers to quote the actual available forms—often 6061-T651 and 7075-T651—under the same thickness and certification requirements. If the 6061 option is an extrusion or bar while the 7075 option is plate, a simple alloy-table comparison misses important differences in properties, tolerance, residual stress and stock yield. The Aluminum Association standards and temper records are the primary designation reference; the purchase order should name the applicable material specification and revision.

Step 3: compare mechanical properties under the governing specification

The table uses typical T6/T651 sheet-and-plate values from Kaiser Aluminum’s producer data sheets so the two alloys are screened on a consistent basis. These are reference values, not minimum design allowables, not BAOSONG capability claims and not substitutes for the certificate and specification governing your stock. Properties also vary with thickness, direction and product form.

Source: Kaiser Aluminum, 6061 Sheet, Coil and Plate technical data and 7075 Sheet, Coil and Plate technical data, both marked Revision 05/06 and accessed September 10, 2026. Use the current contractual specification and lot documentation for engineering release.

Step 4: separate strength from stiffness

7075’s typical yield strength in the comparison is about 82% higher than 6061’s, while its elastic modulus is only about 5% higher. Those percentages are calculations from the producer values above, not universal guarantees. They explain a frequent design error: higher strength delays yielding, but it does not make an unchanged part proportionally stiffer.

If an enclosure face or machine plate deflects too much under service load, geometry usually has greater influence than switching between these two alloys. Increasing section depth, adding ribs, shortening an unsupported span or changing the load path can improve stiffness more directly. If a bracket yields or needs lower mass, 7075 may create useful design space, provided the engineer validates the revised section and all relevant failure modes.

Do not size a critical part from a single room-temperature tensile value. Check material direction, thickness, bearing and shear at joints, fatigue spectrum, impact, temperature, corrosion exposure and safety factors. For regulated or flight-critical work, use the design allowables and approval process required by that program.

Step 5: review machining and dimensional stability

Both alloys are routinely machined into precision parts, but alloy name alone does not determine cycle time or achievable geometry. The Kaiser sheets rate 7075-T6/T651 more favorably for machinability than 6061-T6/T651 within that producer’s relative rating system. This does not mean every 7075 part is cheaper or easier: higher hardness and strength can increase cutting load and tool wear, while chip behavior, cutter engagement, coolant, machine rigidity and feature geometry change the result.

For close-tolerance plate components, the manufacturing plan should address dimensional movement as material is removed. A balanced roughing strategy, material left for finishing, stable datums, intermediate inspection and an appropriate rest or re-clamping sequence may help. T651 stock is stress relieved, but aggressive one-sided pocketing, thin walls or a high removal ratio can still release enough stress to move the part.

Review these details before quoting precision aluminum CNC machining:

• Finished envelope, starting stock and percentage of material removed.
• Thin walls, deep pockets, long-reach tools and small internal radii.
• Datum structure and relationships that cross multiple setups.
• Features measured after unclamping and after surface treatment.
• Grain direction for highly loaded lugs, bores or short-transverse features.
• Prototype, first-article and repeat-production inspection needs.

If dimensional stability is the main risk, a drawing and process review should compare stock condition and machining sequence, not just nominal alloy strength. Use the practical controls in our aluminum CNC machining tolerance guide to define the inspection state and manufacturing evidence.

Step 6: review corrosion, welding and anodizing

Corrosion resistance

6061 generally provides the more forgiving corrosion-resistance choice for ordinary industrial environments. High-strength 7075-T6/T651 needs closer attention to moisture, galvanic couples, coating damage and stress-corrosion conditions. The FAA’s aircraft corrosion inspection guidance specifically identifies high-strength 7075 extrusions as more susceptible to intergranular corrosion than many other aluminum alloys. Apply the protection and inspection rules that govern your own service environment; a high static-strength number does not cancel an unsuitable exposure condition.

Welding

6061 is commonly selected for weldable structures, with the understanding that welding changes properties in and near the heat-affected zone and may require design or process provisions. Conventional fusion welding is generally a poor route for 7075-T651 structural parts. If the assembly requires welding, that constraint may settle the decision before the strength comparison does. Bolted, pinned or otherwise mechanically joined designs need their own bearing, preload, fatigue and corrosion review.

Anodizing and appearance

Both alloys can receive anodic treatments, but their response and visual result are not identical. 6061 is often the more predictable candidate for decorative anodizing. For 7075, alloy chemistry and process conditions can affect tone and appearance. Define the finish specification, functional coating requirements, masking, contact surfaces and acceptance sample; never identify either alloy from finished color alone. BAOSONG’s anodized aluminum overview explains why finishing requirements belong in the drawing and RFQ.

Step 7: compare total cost without a false price ratio

7075 is normally the higher-cost raw material, but a fixed statement such as “7075 costs twice as much” is unreliable. Alloy premiums, region, stock form, thickness, certification, order size and availability change with the quotation date. The useful question is whether the additional total part cost buys needed strength, lower mass or longer service life in the verified application.

For an accurate comparison, request both alternatives against the same drawing revision, quantity, inspection scope, finish and delivery terms. If the 7075 design uses thinner sections, quote the revised geometry rather than pricing two materials against a part designed around 6061.

Decision guide by project requirement

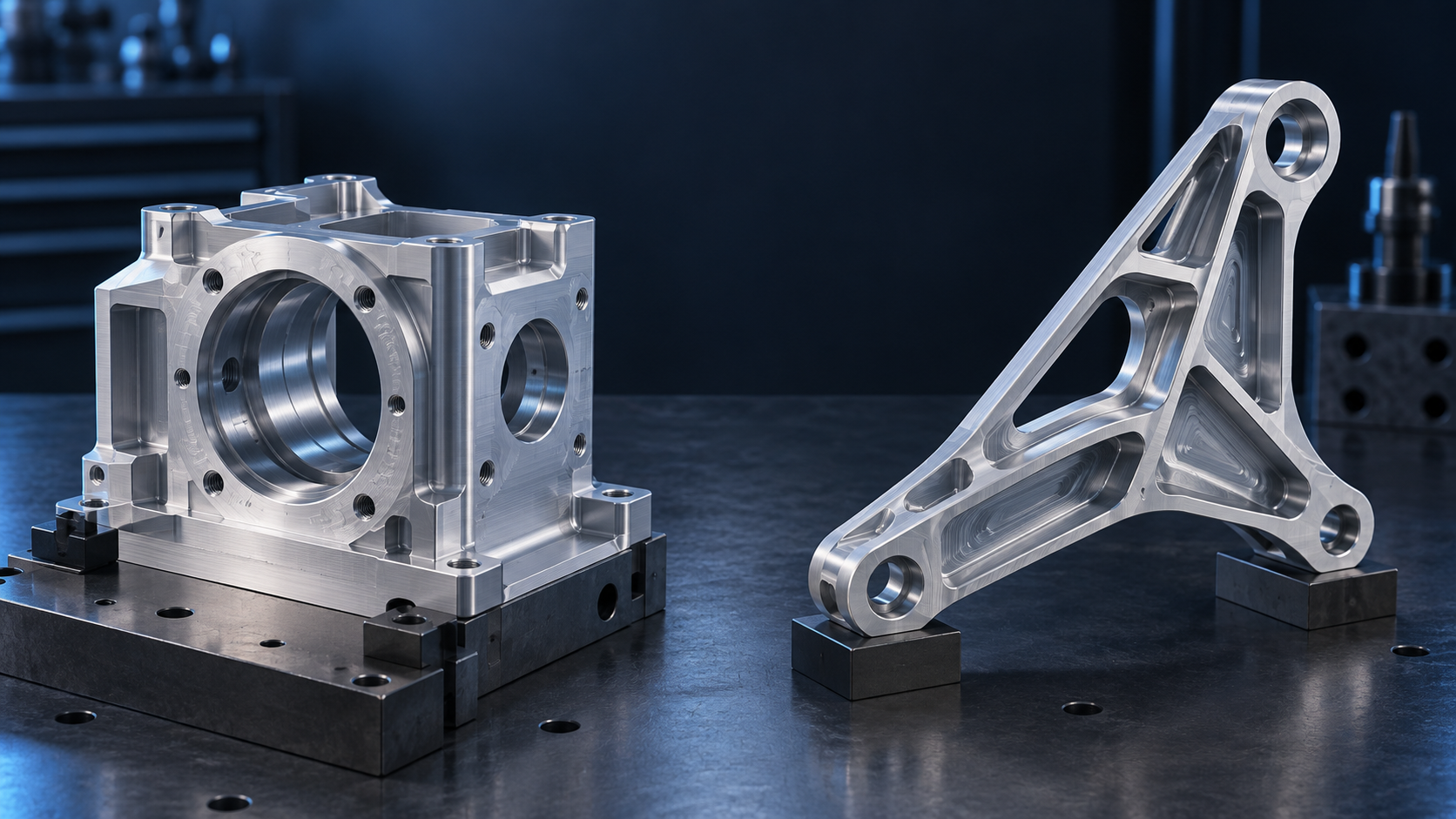

• General machine housing, fixture or instrument enclosure: start with 6061-T6/T651 when loads are moderate and machinability, corrosion resistance, finish and supply flexibility matter.
• Weight-sensitive, highly loaded machined bracket: evaluate 7075-T651 when strength limits the 6061 design. Validate joints, fatigue, directionality, environment and coating.
• Welded frame or assembly: 6061 is usually the practical candidate. Account for heat-affected-zone properties and any post-weld machining.
• Large pocketed plate with tight geometric relationships: compare stress-relieved stock, blank size and machining sequence for both candidates. Do not select solely from tensile data.
• Decorative anodized customer-facing part: 6061 often offers a more predictable finish, but use approved samples and a written cosmetic standard.
• Corrosive or safety-critical service: complete the environment-specific material, temper and protection review before release. A different 7xxx temper or another alloy may be more appropriate than either headline option.

If the real choice is between common extrusion alloys, read our 6061 vs 6063 aluminum comparison. Product form and downstream machining can change the answer even within the 6xxx series.

How to verify the choice before production release

For tight dimensions, use the measurement method, condition and timing defined in the drawing or inspection plan. The NIST measurement-equipment selection model explains why inspection capability must be considered during planning rather than after parts are produced.

Stop conditions: do not release the alloy decision yet

• The calculation uses typical brochure values where the program requires minimum design allowables.
• The purchase description omits temper, product form, thickness range or governing specification.
• 7075 is selected to solve deflection without a geometry or stiffness calculation.
• The part will be fusion welded, but the joint design and post-weld properties have not been approved.
• Corrosion exposure, galvanic couples or coating damage have no validation plan.
• A heavily pocketed plate has tight post-finish tolerances, but the machining and inspection sequence is undefined.
• The two quotations use different geometry, certification, finish, inspection scope or delivery terms.

Copy-ready RFQ checklist for an alloy comparison

• 2D drawing and 3D model with matching revision.
• Required alloy, temper, product form, specification and allowed substitutions.
• Load, temperature, corrosion and joining conditions relevant to material choice.
• Critical dimensions, datums, fits, geometric controls and surface requirements.
• Final finish, masking, cosmetic standard and dimensions that apply after finishing.
• Prototype quantity, production quantity and expected repeat schedule.
• Material certificates, inspection report, first-article or traceability requirements; see the BAOSONG quality overview for the project information that supports inspection planning.

Send BAOSONG your drawings and project requirements for a manufacturing review and quotation. Mark the features that carry load, locate the assembly or drive acceptance so material, machining and inspection can be evaluated together.

Frequently asked questions

Is 7075-T651 always better than 6061-T6?

No. 7075-T651 offers much higher typical strength, but 6061-T6 can be the better engineering choice when its strength is adequate and the part needs corrosion resistance, welding, predictable decorative anodizing, broad availability or lower total cost.

Is 7075 stiffer than 6061?

Only slightly in the typical producer data used here. Their elastic moduli are close, so an unchanged 7075 part will not become dramatically stiffer. Change geometry or load path when deflection is the controlling issue.

Does T651 prevent a plate from warping during machining?

No. Stress relief by stretching helps reduce residual-stress effects, but stock history, thickness, grain direction, clamping and unbalanced material removal can still cause movement. Plan roughing, finishing and inspection around the actual geometry.

Can 7075-T651 be welded?

It is generally not selected for conventional fusion-welded structural assemblies because weldability and heat-affected properties are unfavorable. If joining is required, evaluate mechanical fastening or another alloy and validate the joint under the applicable design rules.

Which alloy is cheaper to machine?

There is no universal answer. 7075 can machine well, while its stock typically costs more and its higher hardness can affect tooling. Compare current stock quotes and the complete routing for the same geometry, finish, inspection and quantity.
